How to Prep Your Subfloor for Hardwood (Concrete, Plywood, OSB)

Industry flooring professionals estimate that 90% of hardwood installation failures, cupping, buckling, squeaking, gapping, and joint failure trace back to subfloor problems that existed before the first plank was laid. The wood didn't fail. The preparation failed. Subfloor prep is the unglamorous, invisible work that determines whether your hardwood floor lasts five years or fifty.

This guide covers all three common residential subfloor types, what to check, what to fix, and in what order.

Why Subfloor Prep Matters More Than Any Other Step

Hardwood is a precision product. Planks interlock at tight tolerances; the locking mechanism, whether a click joint, a clip, or a nail, assumes the surface below is flat, solid, and dry. Deviate from those assumptions, and the failure modes are predictable:

• High spots cause planks to rock, putting stress on the locking joint with every footstep. Over time, the joint opens, squeaks, or fails entirely.
• Low spots leave planks unsupported in the middle, creating a trampoline effect that amplifies sound and concentrates wear on the supported ends.
• Loose subfloor panels move relative to each other, creating noise and transferring shear stress to the hardwood joints above.
• Excess moisture causes solid wood to expand in ways the installation system isn't designed to accommodate, resulting in cupping, crowning, or buckled planks that lift off the subfloor.

The professional standard, and the requirement stated in virtually every hardwood manufacturer's warranty, is no more than 3/16 inch of variation over any 10-foot span, or 1/8 inch over any 6-foot span. Measure in multiple directions across the room. Flatness problems often run at an angle to the walls, so check diagonally as well. The full guide to installing hardwood over concrete covers the concrete-specific steps in greater depth if that's your situation.

Tools Needed for Subfloor Prep

• 10-foot straightedge or level
• Chalk or marker for marking problem areas
• Pin-type moisture meter (for wood subfloors)
• Moisture test kit: plastic sheet or calcium chloride (for concrete)
• Concrete grinder with diamond cup wheel (rental; for concrete high spots)
• Self-leveling compound and mixing bucket (for low spots)
• Floor-leveling compound rated for wood subfloors (for plywood/OSB low spots)
• Drill and deck screws or ring-shank nails (for securing loose panels)
• Circular saw or jigsaw (for replacing damaged sections)
• Belt sander or floor planer (for plywood/OSB high spots)

For a broader overview of what to own versus rent across the full installation project, see the hardwood floor installation tools guide.

Concrete Subfloor Prep

Concrete is the most demanding subfloor to prepare, primarily because of moisture. Even slabs that look and feel dry can have measurable vapor transmission rates that will damage hardwood over time.

Step 1: Moisture Testing

Never skip this step over concrete. Run at least one of the following tests, covering one test location per 1,000 square feet of floor area:

• Plastic-sheet test (ASTM D4263): Tape a 24x24-inch plastic sheet to the slab, seal all edges, and wait 72 hours. Moisture under the sheet indicates a problem.
• Calcium chloride test (ASTM F1869): Measures moisture vapor emission rate (MVER) in lbs/1,000 sq ft/24 hrs. Most floating and glue-down hardwood manufacturers require MVER below 3 lbs.
• In-situ RH probe (ASTM F2170): The most accurate method. Drill holes to 40% of slab depth, insert RH sensors, and read after 24–72 hours. Below 75% RH is generally acceptable.

If moisture levels exceed product limits, you have three options: install a higher-rated vapor barrier or moisture mat, apply an epoxy moisture-control coating, or choose a floating system rated for higher moisture conditions.

Industry moisture testing standards published by the American Society for Testing and Materials (ASTM) are widely used across the flooring industry to determine whether concrete slabs are ready for hardwood installation.

The moisture barrier selection guide covers all three options and their cost implications.

Step 2: Assess and Mark Problem Areas

Lay your 10-foot straightedge across the slab in multiple directions, parallel to each wall and diagonally across the room. Hold a flashlight at floor level to reveal the gap between the straightedge and the surface. Mark every high spot and low spot with chalk, noting the approximate magnitude of each deviation.

Step 3: Address High Spots

High spots on concrete must be ground down. Use a concrete angle grinder with a diamond cup wheel, available at equipment rental centers for $50–$75 per day. Wear eye protection, hearing protection, and a respirator rated for concrete dust. Grind gradually and recheck with the straight edge. Do not oversell a grinder: it's easy to create a low spot by grinding too aggressively.

Step 4: Fill Low Spots and Cracks

Use a self-leveling compound rated for concrete subfloors. Mix according to manufacturer directions (most are mixed to a consistency slightly thinner than pancake batter), pour into low areas, and use a gauge rake or spreader to distribute it. Self-leveling compound finds its own level without troweling. Don't overwork it.

Allow full cure time per the manufacturer's spec, typically 4–24 hours, before walking on it or laying flooring. Fill cracks and control joints with an appropriate crack filler or polyurethane caulk; self-leveling compound is not suitable for cracks that may have future movement.

Plywood Subfloor Prep

Plywood is the most forgiving subfloor for hardwood installation and the most common in wood-framed homes. The standard specification is 3/4-inch (19mm) exterior-grade plywood over joists spaced 16 inches on center. Prep focuses on eliminating movement, reducing squeaks, and flattening within tolerance.

Step 1: Moisture Testing

Use a pin-type moisture meter across multiple locations on the subfloor. Readings should be below 12% moisture content. Ideally, the subfloor and the hardwood planks (after acclimation) should be within 4% of each other. If the subfloor reads higher than the acclimated planks by more than 4%, the subfloor is too wet. Identify and fix the moisture source before installing any hardwood. The guide on acclimating hardwood floors covers the relationship between subfloor moisture and acclimation time.

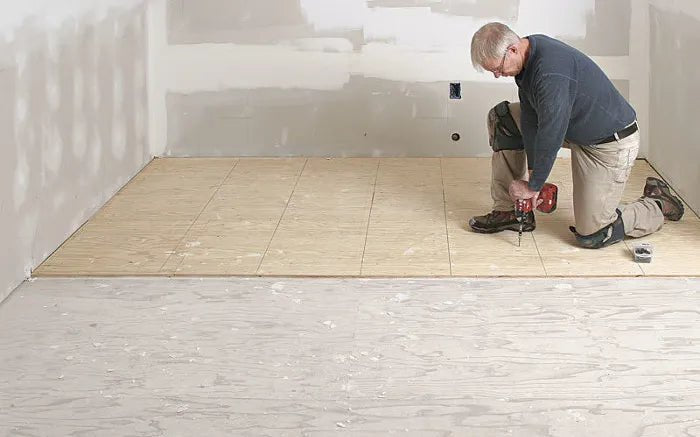

Step 2: Secure Loose Panels

Walk the entire subfloor area and feel for movement, bounce, or springiness. Any panel that deflects underfoot needs additional fasteners. Drive 2 1/2-inch deck screws or ring-shank nails through the plywood into the joists below, every 6 inches along each joist line in the problem area. Pre-drill to avoid splitting. Squeaks from panel-to-joist movement often disappear once panels are secured this way.

For squeaks that persist from panel-to-panel rubbing, a dedicated shim fix may be needed; the guide on wood floor shims and squeaky floors covers this exact repair.

Step 3: Flatten the Surface

High spots in plywood are rare but do occur at seams where one panel sits slightly proud of the adjacent one, or at fastener heads that weren't countersunk. Sand or belt-sand these down, or use a floor planer on pronounced ridges. Low spots and voids (common in lower-grade plywood) fill with a floor-leveling compound rated for wood substrates, not the concrete variety, which doesn't bond well to wood. Apply with a trowel, feather the edges thin, and allow full cure before checking flatness again.

Step 4: Verify Panel Integrity

Probe any soft, spongy, or discolored areas. Subfloor plywood that has absorbed moisture and delaminated cannot be leveled or fastened reliably; it needs to be cut out and replaced. Replace damaged sections with panels of matching thickness and fasten them fully to the joists. A replaced section that sits even slightly proud of the surrounding subfloor needs to be planed or sanded flush before hardwood goes over it.

OSB Subfloor Prep

OSB (Oriented Strand Board) is increasingly common in new construction as a cost-effective alternative to plywood. It performs acceptably under hardwood floors with two caveats that don't apply to plywood: edge swelling and reduced fastener holding power after moisture exposure.

Edge Swelling

OSB panels expand at their edges when exposed to moisture, a phenomenon much more pronounced than in plywood. In a home that experienced water intrusion or was left open during construction, OSB seams may have ridges from this edge swelling. These ridges must be planed or sanded flat. If the edge swelling is severe (more than 1/4 inch), replacing the affected panels is more reliable than trying to flatten them.

Fastener Retention

OSB that has gotten wet and dried loses fastener holding strength more rapidly than plywood. If the OSB in your home was exposed to weather during construction, verify that it is still holding its fasteners by walking the full area and checking for squeaks or movement. Re-fasten any areas that show movement using ring-shank nails or screws into the joists.

Flatness and Moisture Testing

Apply the same flatness standard (3/16 inch over 10 feet) and the same moisture testing approach as plywood. Fill voids and low spots with floor-leveling compound, allow it to cure, and verify flatness before installation. The full prep sequence for OSB is essentially identical to plywood; the additional concern is checking for historical moisture damage before you start.

Performance recommendations for wood structural panels can also be found through the Engineered Wood Association (APA), which outlines best practices for OSB and plywood subfloor systems.

If you're weighing method options after your subfloor is prepped, the floating vs. nail-down vs. glue-down comparison maps each method to the subfloor types it works best with.

Leveling and Flatness — The 3/16-Inch Rule

The 3/16-inch-over-10-feet standard isn't arbitrary. It comes from the dimensional tolerances of hardwood planks and locking mechanisms. A plank that bridges a 1/4-inch valley is under bending stress with every footstep. A plank that rides over a 1/4-inch ridge transfers shear stress to the locking joint on both sides with every step. Multiply this by thousands of footsteps per year over years of use, and the cumulative effect is joint failure, squeaking, and planks that shift relative to each other.

Measure in at least four directions across every room: east-west, north-south, and both diagonals. A room that is flat along the walls may have a crown in the center that only the diagonal measurement reveals. Mark every deviation with chalk and measure its magnitude before you start any corrections. This gives you a map of exactly where to grind, fill, or repair.

After corrections, allow full cure time for any compounds used and then re-measure. Don't assume the compound is filled to the perfect level. Self-leveling compounds can shrink slightly as they cure, and troweled compounds may be slightly high at the feathered edges.

A final check before laying the vapor barrier or underlayment takes ten minutes and prevents the need to pull up planks later. Once the subfloor is confirmed flat and dry, you're ready for the next step.

See the guide to installing quarter-round moldings for how to handle the trim work that finishes the job.

Moisture Testing Summary by Subfloor Type

Subfloor moisture also affects hardwood in rooms with fluctuating conditions. If you have concerns about protecting your finished floor against pets, furniture, or heavy use over time, the guide to protecting hardwood floors from everyday damage is a useful follow-up read once installation is complete.

A Hardwood Floor Is Only as Good as the Surface Beneath It

Most hardwood failures do not start with the flooring itself. They start below it.

Moisture, uneven surfaces, loose panels, and overlooked subfloor movement create stress that hardwood simply cannot compensate for over time. The installation method matters, but preparation matters more.

When the subfloor is flat, dry, and structurally sound, everything above it performs better:

• tighter joints
• fewer squeaks
• better long-term stability
• and a floor that actually lasts the way it was designed to

That invisible preparation work is what separates a professional-quality floor from one that starts failing within a few seasons.
