Uneven Floor Transitions: How to Handle Height Differences Between Tile and Hardwood

You've just had new porcelain tile laid in your kitchen, and now you're standing at the doorway staring at a 1/2-inch drop down to your existing hardwood. That gap isn't just an eyesore. It's a tripping hazard, a place where dirt collects, and a reminder that you still have one more problem to solve. Getting your uneven floor transition right is exactly what this guide is for.

The good news: there's a specific solution for every height difference, and most of them are genuinely DIY-friendly. You don't need to rip up either floor or hire a contractor. You need the right transition piece and a clear plan.

Why Floor Height Differences Happen

Before you can fix the problem, it helps to understand why it exists. Floor height differences almost always come down to one of three things: subfloor preparation, material thickness, or the installation method used.

Standard solid hardwood flooring runs 3/4 inch thick. Most ceramic and porcelain tile runs 3/8 inch to 1/2 inch thick, but tile is typically installed over a layer of cement board or an uncoupling membrane (like Schluter Ditra), which the Tile Council of North America requires for code-compliant installations. That membrane adds another 1/4 inch or so. Add thinset mortar on top and your tile assembly can easily reach 3/4 inch to 1 inch above the subfloor.

Hardwood, especially a floating system, sits directly on the subfloor with only a thin underlayment beneath it. So even if both floors started from the same subfloor, the tile often ends up higher because of its installation system. The reverse happens when hardwood is nailed or glued over a thick plywood layer that the tile wasn't installed on.

The National Wood Flooring Association (NWFA) also requires a 3/4-inch expansion gap around the perimeter of all hardwood installations. That gap has to be covered, which is where the transition piece does double duty: it hides the gap and handles any height difference at the same time.

The Right Uneven Floor Transition for Your Height Difference

Not every height difference calls for the same solution. A 1/8-inch difference is almost nothing. A 3/4-inch difference is significant and needs a real threshold. Here's how to match your situation to the right transition piece.

For most homeowners dealing with tile and hardwood, you'll fall somewhere in that 1/8-inch to 1/2-inch range. That's the sweet spot for a standard reducer molding, and it's the most beginner-friendly fix on the list. Check out our full breakdown of every option in our guide to floor transition strips and all your options for wood floor transitions.

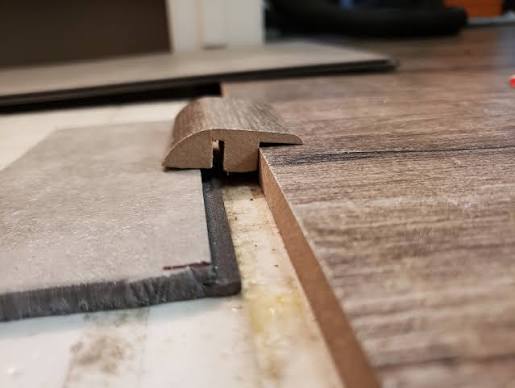

Reducer Molding: The Most Common Fix for an Uneven Floor Transition

A reducer molding is exactly what it sounds like. It's a tapered strip that slopes from the higher floor down to the lower floor, bridging the height difference smoothly without a sharp edge. It's the go-to solution when one floor sits between 1/8 inch and 1/2 inch above the other.

I've seen homeowners overthink this and spend weeks agonizing over the "right" solution, when a $35 to $45 reducer strip from the hardware store would have solved the whole thing in an afternoon. Here's how the installation actually works.

How to Install a Reducer Molding in 6 Steps

How do you install a reducer molding between tile and hardwood floors with different heights? Install the track first, then snap the reducer into place over the height difference. Here are the steps:

1. Measure the gap. Use a tape measure and a straightedge to determine the exact height difference between your two floors. Note the gap width at its widest point too, since that determines what reducer profile you need.
2. Choose your reducer. For a 1/4-inch height difference, a standard overlap reducer works. For a 3/8-inch to 1/2-inch difference, look for a "step reducer" or threshold style with a deeper slope.
3. Cut the track to length. Most reducer kits include a metal or plastic mounting track. Cut it to fit the doorway or transition opening using a hacksaw or tin snips. Leave a 1/4-inch gap at each end to allow for expansion.
4. Anchor the track. If your subfloor is wood, nail or screw the track into the subfloor in the center of the expansion gap. On concrete, use construction adhesive or concrete screws. Make sure the track sits flat.
5. Test-fit the reducer. Lay the reducer molding over the track before snapping it in, just to confirm it covers both floor edges cleanly and the slope runs in the right direction, higher floor to lower floor.
6. Snap or glue into place. Most modern reducer kits snap onto the track. If yours is a solid wood reducer without a track system, apply construction adhesive to the track and press the reducer firmly in place. Weight it overnight.

Want the full detailed walkthrough? Our guide to how to install wood floor reducer molding for wood floor transitions covers every variation, including curved doorways and doorways with existing door casings.

When Tile Is Higher Than the Hardwood: Uneven Floor Transition Solutions

This is the scenario I see most often. You installed new tile in a bathroom or kitchen and now it sits 3/8 inch to 1/2 inch above the adjoining hardwood floor. Here's exactly what to do, depending on the size of that drop.

For a 1/4-inch to 3/8-inch difference: A standard overlap reducer molding handles this perfectly. The reducer sits on the hardwood side with its higher edge tucked under the tile edge or resting against it. The slope covers the height change over a 2-inch to 3-inch horizontal run, which is gradual enough that nobody trips and it looks intentional.

For a 3/8-inch to 1/2-inch difference: You're at the upper end of what a standard reducer can handle. Look for a "step reducer" or a saddle-style threshold that offers a steeper profile. Some installers use a solid oak or maple threshold that's been custom milled to the exact height difference. According to Houzz flooring experts, keeping the minimum edge of any custom milled transition at 1/8 inch thick (rather than feathering to zero) makes the piece significantly stronger and less likely to crack under foot traffic.

For a 1/2-inch difference or more: At this point, you're looking at a genuine threshold strip. These are wider (often 3 inches to 4 inches) and designed specifically for doorway use where a significant step exists. A Hollywood saddle or a solid wood threshold saddle are both commonly used here. Some installers choose to add a strip of 3/8-inch plywood on the hardwood side of the transition to raise the wood floor level and reduce the effective height difference before installing the reducer. That extra prep step takes about 20 minutes and can drop a 5/8-inch difference down to a 1/4-inch difference, making the whole transition look far cleaner.

When Hardwood Is Higher Than the Tile

This scenario is less common but it does happen, usually when hardwood was installed over a thick plywood buildup that the tile room didn't receive, or when old hardwood predates a new tile installation in an adjacent room.

The solution is essentially the same reducer molding approach, just flipped. The reducer's higher end sits on the hardwood side and slopes down to the tile. The trickier question is how to anchor it, since you can't always nail into the tile side. In most cases, the track gets fastened to the subfloor in the middle of the gap, and the reducer spans both sides.

If the hardwood is significantly higher (3/4 inch or more above the tile), the better long-term fix is often to address the subfloor on the tile side rather than trying to span the gap with a transition strip alone. This might mean floating the hardwood over a thinner underlayment, or building up the tile side with a self-leveling compound before installing the tile.

One major advantage of a floating hardwood system is flexibility here. Because the planks aren't nailed or glued down, you can sometimes adjust the subfloor prep without destroying the flooring. Our complete guide to floating solid hardwood flooring goes deep on subfloor prep and how to use the floating method to your advantage when transitioning to tile.

For doorway transitions specifically, a T-molding is worth considering if the two floors are within 1/8 inch of each other after any subfloor adjustment. Our guide to how to install T-molding in laminate flooring covers the same track-and-snap approach that works equally well for hardwood.

Material Options and What They Cost

Reducer moldings and threshold strips come in three main materials: wood, metal, and vinyl. Each has its place depending on your floor type, traffic level, and budget. I'll be honest with you: the cheap vinyl options from the big-box stores feel cheap too. Spend a little more and get a wood or aluminum piece that lasts.

A typical doorway runs about 36 inches wide, so you're looking at 3 linear feet per transition. Even with solid wood, that's a $12 to $36 materials cost for a single doorway. Add a $10 to $15 mounting track kit and your total is still well under $50. Professional installation adds $50 to $100 per transition depending on your market, but this is genuinely one of the easier flooring tasks you can DIY.

For a complete look at every transition strip option, including carpet reducers and aluminum T-moldings, check out our guide to floor transition strips and all your options for wood floor transitions.

Frequently Asked Questions

How do you transition between floors of different heights?

Use a reducer molding for height differences between 1/8 inch and 1/2 inch. Choose a threshold strip or saddle for larger differences up to 3/4 inch. For differences over 3/4 inch, address the subfloor height first, then use a standard reducer or threshold. Mount the transition piece over the expansion gap between the two floors using a track system or construction adhesive.

What is a reducer strip for flooring?

A floor reducer strip is a tapered transition piece that slopes from a higher floor surface down to a lower one. It eliminates the sharp height difference at the seam, covers the expansion gap required by both tile and hardwood installations, and creates a smooth walkable transition. Reducers are sold in wood, metal, and vinyl, typically in 6-foot or 8-foot lengths.

Can you use T-molding for uneven floors?

T-molding is designed for floors at the same height or within about 1/8 inch of each other. It sits flat on both surfaces and covers the gap between them. If your floors have a height difference greater than 1/8 inch, T-molding will rock or sit unevenly and is not the right choice. Use a reducer molding instead. See our guide to installing T-molding for the exact height tolerances involved.

How much does a floor transition strip cost?

Materials run $1 to $12 per linear foot depending on material and profile. A standard doorway transition (about 36 inches) typically costs $15 to $45 in materials. Add a mounting track kit for $10 to $15. Professional installation adds $50 to $100 per transition. Most homeowners spend $25 to $60 total for a single DIY transition.

Do I need a professional to install a floor transition?

For most standard reducer and T-molding installations, no. The track-and-snap systems sold at hardware stores are designed for homeowners. You need basic measuring, a handsaw or hacksaw, and a drill. I'd say if you've ever installed a curtain rod or hung shelves, you can handle this. The exception is custom-milled wood thresholds or large height differences requiring subfloor work. Those are worth calling a pro for.

What if the height difference between my tile and hardwood is more than 3/4 inch?

At 3/4 inch or more, no standard transition piece will look or perform well on its own. The best fix is to build up the lower floor's subfloor with a plywood layer (3/8-inch or 1/2-inch plywood works well) to reduce the effective height difference, then install a standard reducer over the remaining gap. This is much easier to do during the original installation, but it's not impossible to add plywood strips to an edge after the fact. Alternatively, if the lower floor is hardwood on a floating system, review our floating hardwood installation guide for subfloor adjustment options.

Ready to Handle Every Wood-to-Tile Transition?

Height differences between tile and hardwood are one of the most common finishing challenges in any home renovation. Once you know your exact height difference and you've matched it to the right transition type, the actual fix is usually a single afternoon of work and under $50 in materials.

Whether you're handling a 1/4-inch drop from tile to wood or working through a more complex multi-room transition plan, the specifics matter. For a full library of ideas, installation approaches, and design options for every tile-to-wood scenario, read our complete transition guide.

Read our complete wood to tile transition guide: 10 ideas you'll actually use.
