How to Install T-Molding: The Complete Step-by-Step Guide

If you've got two floors meeting in a doorway or open hallway and both surfaces sit at the same level, installing T-molding is your cleanest solution. Not a reducer, not a threshold, not an end cap. A T-molding spans a gap between floors of equal height and covers the expansion space that both floors need to breathe and move seasonally.

The actual process of installing T-molding is not complicated, but there are a few spots where people get it wrong: cutting the gap too narrow, picking the wrong molding type for the height difference, or skipping the pre-drill step and splitting the molding. This guide covers both installation methods from start to finish, with the tools table, common mistakes, and a quick comparison of all transition types so you're confident you're using the right piece before you make a single cut.

What T-Molding Is (and When to Use It)

T-molding is exactly what the name suggests: a strip shaped like the letter T. The wide top piece covers the gap between two floors, and the stem of the T drops down into that gap to keep the molding centered and stable. It spans transitions where both floors are at the same finished height, typically within about 1/8 inch of each other.

The most common uses are hardwood to hardwood across a doorway, hardwood to tile when the tile and wood sit flush, and laminate to laminate in open-concept spaces where two flooring runs meet. You can see how this works visually in our deeper look at T-molding for hardwood floor transitions.

The key condition is equal height. If one floor is higher than the other, even by a quarter inch, you need a reducer or threshold instead of a T-molding. That distinction matters more than people realize, and it's covered in the comparison table a few sections below.

T-Molding vs. Reducer vs. Threshold vs. End Cap: Quick Comparison

Before you buy anything, confirm you have the right transition type. Using a reducer where you need a T-molding (or vice versa) is the most common and most visible mistake in DIY floor finishing. Here's how each type works.

If you're working with a height difference between the two floors, the guide on uneven floor transitions and height differences will give you a clearer path to the right solution. And if you're not sure which type fits your situation at all, our full rundown on all your floor transition strip options covers every scenario.

Tools You Need for Installing T Molding

You don't need a full contractor toolkit for this job. Here's what actually gets used.

On the saw question: a miter saw makes fast, accurate square and angled cuts and is worth the rental if you have multiple doorways. A sharp handsaw does the job fine for one or two cuts. What you want to avoid is using a utility knife or scoring method on T-molding, since the profile is too thick and inconsistent for that approach.

The NWFA Installation Guidelines consistently reinforce that proper tooling prevents most of the defects installers deal with during finishing work.

How to Install T Molding with a Track (Snap-In Method)

The track method is the standard approach for most wood and laminate T-moldings sold today. The metal or plastic track anchors to the subfloor; the molding snaps onto it from above. It's cleaner than gluing, easier to remove if needed, and holds the molding centered over the gap even under foot traffic.

Step 1: Measure the Gap

Measure the width of the transition opening, from doorstop to doorstop or from the edge of one floor surface to the edge of the other. Also measure the gap between the two floor edges. For T-molding to sit properly, you need a gap of 1/2 inch to 5/8 inch between the two floor surfaces. That gap is the expansion space both floors require to move with seasonal humidity changes.

If your gap is narrower than 1/2 inch, the T-molding stem won't fit, and the molding will bridge too rigidly, which can cause buckling over time. If it's wider than 5/8 inch, the molding top won't fully cover it. Cut or adjust the gap as needed before you do anything else. The "This Old House team on molding installation" consistently notes that fitting issues almost always trace back to improper gap sizing, not to the molding itself.

Step 2: Cut the Track to Length

Take the metal track and cut it to match your measured opening length. Use tin snips for most aluminum tracks. If the track is steel, a metal-cutting blade on a reciprocating saw works better. The track should fit snugly between the door casings but not be forced in, since forcing it will bow the track and prevent the molding from snapping evenly.

For angled doorways or non-square transitions, cut the track at the same angle you'll cut the molding. Mark the angle with a pencil, use an angle finder if the opening is irregular, and cut both pieces consistently so the molding sits flat over the track without gaps at the ends.

Step 3: Position and Fasten the Track

Center the track over the expansion gap so that equal amounts of gap are exposed on each side of the track stem. Hold or tape the track in position and mark the screw hole locations onto the subfloor with a pencil.

Pre-drill every hole before driving screws. This is the step people skip and regret. The track is thin metal; without a pilot hole, the screw can deflect and pull the track off-center, or the track can crack at the hole. Use a drill bit one size smaller than your screw diameter. Drive the screws until the track sits flat and firm, but don't overtighten, since a bowed track will prevent the snap-in from seating correctly.

If you're working over concrete, use concrete anchors or a track-compatible adhesive instead of wood screws. Most track systems include hardware for both subfloor types.

Step 4: Cut the T-Molding to Length

Measure the exact length of the installed track (not the doorway opening, the track itself). Transfer that measurement to the T-molding and mark your cut line clearly with a pencil. For a straight cut, set your miter saw to 0 degrees and make a clean square cut. The molding should match the track end to end.

For angled openings, use an angle finder to determine the wall angle and set your miter saw accordingly. Cut both ends of the molding at complementary angles if the doorway is not square. Test-fit before committing; T-molding is easier to trim a fraction than to replace entirely.

Step 5: Snap the Molding onto the Track

Set one end of the T-molding onto the track and press it down firmly along the length. The molding stem should slide into the track channel as you press. Work from one end to the other rather than trying to press the whole piece down at once. Once it's seated along the full length, use a rubber mallet to tap any sections that haven't fully snapped in.

You should feel and hear a distinct click as each section snaps. If a section won't seat, check that the track is not bowed in that area. Loosen the screw nearest the problem area, let the track relax, and try again. Do not force the molding with a metal hammer; you'll dent or crack the profile.

How to Install T Molding Without a Track (Glue-Down or Screw-Down Method)

Some T-moldings, particularly solid wood profiles and older-style moldings, don't come with a track system. Instead, you fasten the stem directly to the subfloor with adhesive or by screwing up through the stem. This method is less forgiving than snap-in, but it works well on concrete subfloors or in situations where the subfloor material won't hold track screws reliably.

Glue-Down Method

Cut the molding to length first (same process as Step 4 above). Apply a bead of construction adhesive along the bottom of the T-molding stem. Center the molding over the expansion gap, press it into position, and hold or tape it in place while the adhesive cures. Most construction adhesives need 30 to 60 minutes of sustained pressure for a secure initial bond and 24 hours for a full cure. Don't put foot traffic on it until the adhesive has fully set.

Painter's tape across the top of the molding, anchoring it to both floor surfaces, works well to hold it in place during cure time. Pull the tape gently once the adhesive is set to avoid lifting any floor finish.

Screw-Down Method

For solid wood T-molding with a thicker stem, you can drive screws up through the stem from below (if accessible) or down through pre-drilled holes in the stem from above. The from-above approach leaves visible screw heads that need to be filled and stained to match, so it's less ideal for finished wood transitions but perfectly fine for utility areas.

Pre-drill every screw hole in the stem. This step is non-negotiable with solid wood molding. Without a pilot hole, the wood will split along the grain, especially near the ends. Use a countersink bit so the screw head sits flush or slightly below the surface, then fill with a color-matched wood filler.

Cutting T-Molding for Doorways and Angles

Straight doorways are simple. Where things get more complicated is angled door openings, arched passageways, and transitions that run across an open floor plan rather than through a defined doorway.

For open-concept transitions, the T-molding runs in a straight line across an open floor with no doorstops or casings to hide the ends. In that case, you have two choices: miter the ends at 45 degrees with a return piece (a small angled filler that wraps the profile back onto itself), or use end plugs that come with some molding systems. The return approach is cleaner with solid wood T-molding; end plugs are faster for engineered or laminate profiles.

Arched openings require a flexible or segmented transition rather than a rigid T-molding. For those situations, look at the options covered in our floor transition ideas for open-concept homes.

On the saw choice: use a miter saw for any cut where accuracy matters. A 90-degree square cut from a handsaw is fine, but angled cuts are genuinely difficult to keep consistent without a miter saw. If you're doing multiple doorways in a renovation, renting a miter saw for a day is worth it.

Common Mistakes When Installing T Molding

Most problems with T-molding installations come down to a few repeatable mistakes. Here's what to watch for before you get to a point where the fix is harder than the original job.

Wrong Gap Size

Too narrow and the T-molding stem won't fit without forcing, which puts pressure on the floor edges and can cause chipping or buckling. Too wide and the molding top doesn't cover the gap, leaving visible subfloor. Aim for 1/2 to 5/8 inch consistently across the full length of the transition.

Using a Reducer Instead of a T-Molding

A reducer looks similar but has a slope on one side for a height transition. If your floors are at the same level and you install a reducer, you get an unnecessary ramp that's a tripping hazard and looks wrong. If you're unsure whether you have a height difference, use a straight edge across both surfaces and look for a gap underneath. A gap of 1/8 inch or more means you need a reducer. See our reducer molding installation guide for those situations.

Not Pre-Drilling

Both the metal track and solid wood molding will crack, split, or deflect if you drive screws without pilot holes. Take the 30 seconds to pre-drill every hole. It prevents the most common finish-day problem in floor molding installation.

Overtightening Track Screws

The track needs to sit flat against the subfloor, not pulled tight enough to bow. Overtightened screws bow the track, which prevents the molding from snapping in evenly and can create high spots in the middle of the transition strip.

Forgetting Expansion Space Under the Molding

T-molding covers the expansion gap, but it doesn't fill it. The floors under the molding still need to be able to move. Don't apply adhesive in a way that bonds the floor surfaces to the molding or to each other. The top of the T-molding sits over the gap; it doesn't seal it.

For a broader look at what goes wrong with transitions, including issues specific to wood-to-tile applications, the top 5 wood-to-tile transition mistakes post covers the most expensive errors to avoid.

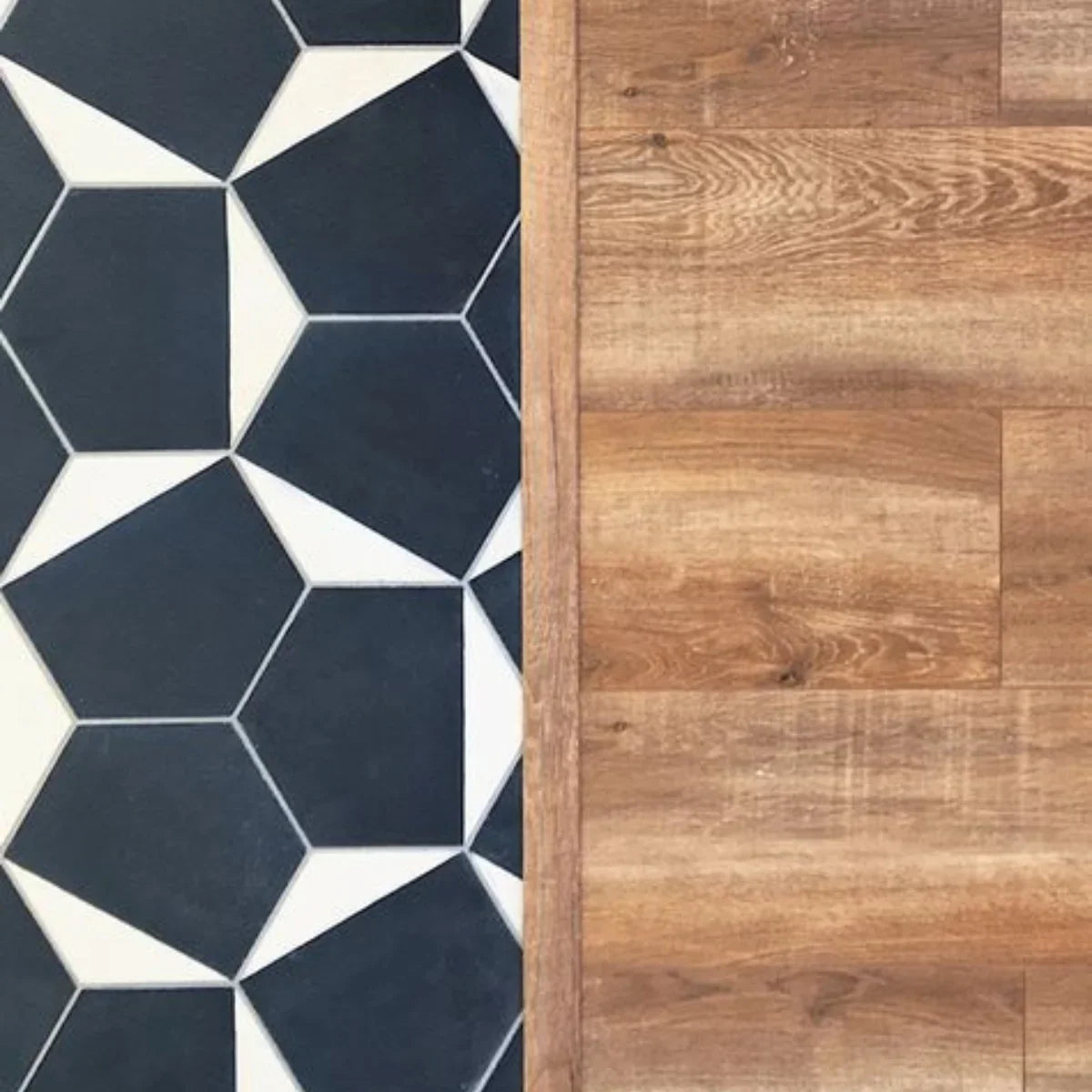

T-Molding for Hardwood to Tile Transitions at the Same Level

Installing T-molding between hardwood and tile is the same process as hardwood to hardwood, with one important difference: you need to confirm that the tile surface and the hardwood surface are genuinely at the same finished height before you commit to T-molding as your solution.

Tile installations sit on a mortar or cement board base that adds height. A standard 3/4-inch hardwood floor often ends up at a different finished height than a tile floor set on a 1/2-inch cement board substrate. Measure both surfaces from the subfloor up to the finished top surface, then compare. If the difference is more than about 1/8 inch, you're looking at a reducer or threshold situation, not T-molding.

When the surfaces are flush, the installation process is identical: measure the gap, install the track or prepare for glue-down, cut the molding to length, and snap or press into position. The wood-to-tile transition ideas guide has a useful visual overview of all the ways hardwood and tile can meet, including same-height situations where T-molding works perfectly.

For design-focused options beyond the standard T-molding profile, especially in open-concept plans where the transition is a visual feature rather than a purely functional one, the Fine Homebuilding community on floor transitions has worthwhile discussions on fabricated and custom solutions.

A Clean T-Molding Installation Comes Down to the Details

Installing T-molding is one of the more approachable finish carpentry tasks in a floor renovation, but it rewards preparation. Get the gap right before you cut anything. Confirm you have the right molding type for your specific height situation. Pre-drill every screw hole. Use a rubber mallet for snap-in systems, not a hammer.

The two methods, track snap-in and glue or screw-down, both work well. The track method is cleaner for most situations and easier to remove or adjust later. The glue-down method works better over concrete or in spots where the subfloor won't hold screws reliably. Either way, the process is the same at its core: measure twice, cut once, seat the molding flat without forcing it.

If you're still figuring out whether T-molding is the right call for your specific transition, our guide on all floor transition strip options lays out every scenario side by side so you can make the call with confidence before you buy.

Complete the Look with the Right Transition

The right T-molding does more than cover an expansion gap. It creates a clean, considered connection between your floors and gives the entire installation a more polished finish.

Explore Easiklip’s T-molding and transition options to find a profile that complements your hardwood species and finish. With the right transition in place, even a small flooring detail can make the whole room feel complete.

FAQ

What is the correct gap size for installing T-molding?
The expansion gap between the two floor edges should be 1/2 inch to 5/8 inch. This gives the T-molding stem room to sit centered in the gap while the top covers both floor edges cleanly. A gap narrower than 1/2 inch will prevent the stem from fitting without force; wider than 5/8 inch and the molding top won't fully cover the gap.

Can I install t molding without a track?
Yes. T-molding can be installed with construction adhesive applied to the stem or with screws driven through pre-drilled pilot holes in the stem. The track snap-in method is more common for manufactured wood, laminate, and engineered profiles. Solid wood T-molding is often installed with adhesive or screws since the heavier profile holds well without a track.

How do I install T-molding with a track?
Cut the track to length with tin snips, center it over the expansion gap, pre-drill screw holes, fasten the track to the subfloor, cut the molding to match the track length, and snap the molding onto the track from one end to the other. A rubber mallet helps seat any sections that don't snap down fully under hand pressure.

What's the difference between t-molding and a reducer?
T-molding is symmetric and designed for floors at the same finished height. A reducer has a tapered slope on one side and is used when one floor is higher than the other, typically 1/4 inch to 3/4 inch of height difference. Using a reducer on same-height floors creates an unnecessary and unattractive ramp.

Can t-molding be used between hardwood and tile?
Yes, as long as both surfaces are at the same finished height (within about 1/8 inch). The installation process is identical to hardwood-to-hardwood. Measure finished heights carefully before choosing T-molding for a wood-to-tile transition, since the tile substrate (cement board or mortar bed) affects finished height significantly.

Do I need to pre-drill before screwing in a T-molding track?
Yes, always. Pre-drilling prevents the track from deflecting or cracking during screw installation. For solid wood T-molding installed without a track, pre-drilling prevents the stem from splitting near screw holes, especially at the ends of the molding where wood grain is most vulnerable.

How do I cut T-molding for an angled doorway?
Use an angle finder to measure the actual wall angle, then set your miter saw to cut complementary angles on both ends of the molding. Cut the metal track at the same angle with tin snips. Test-fit before final installation. For non-standard angles, a digital angle finder gives more accurate readings than an analog protractor.
